Scan to BIM Modelling for a Mallow Bridge
Project Brief
- Project Name: Mallow Bridge
- Turnaround Time: 20 Days
- Services: BIM modelling
- Project Deliverables: Mallow Bridge

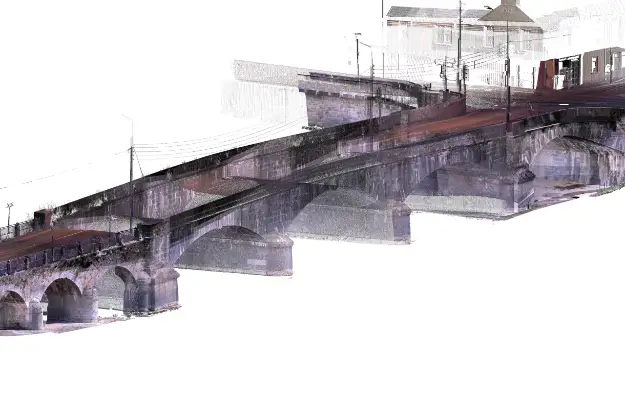

- Responsibilities: Scan to BIM modelling using Revit. The client provided us with point cloud data along with photographs of the bridge.
The bridge in its present iteration was built in the 1850s, with its history dating back to the early 17th century. The city council planned to construct a boardwalk, and our client required a BIM model before construction began.
Challenges
- The bridge's undulating nature posed a significant challenge for the modelling process.
- A curb connected the road and sidewalk on the bridge. Due to the bridge's undulating nature, modelling the curb proved challenging.
- Creating the bridge's topography poses a considerable challenge due to software limitations.
Solution

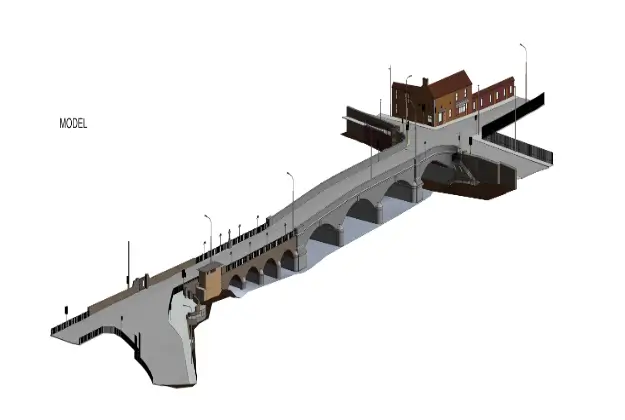

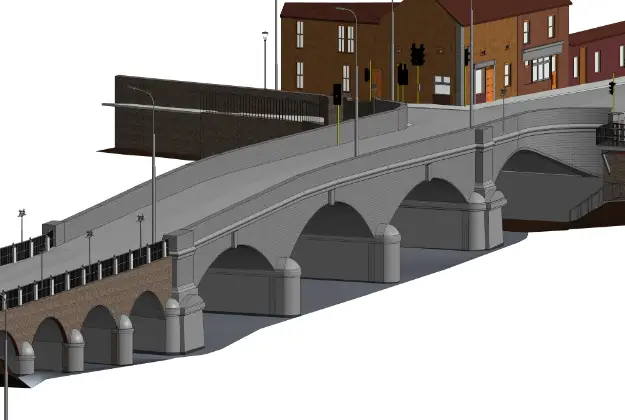

- With dedication and persistence, the bridge was precisely modelled.
- A separate curb was installed for all curves and twists in the road.
- With our prior experience and expertise, we met the challenge with panache.
